고양이 레이저 장난감 만들기 (아두이노)

번개애비 2019. 8. 5. 02:35

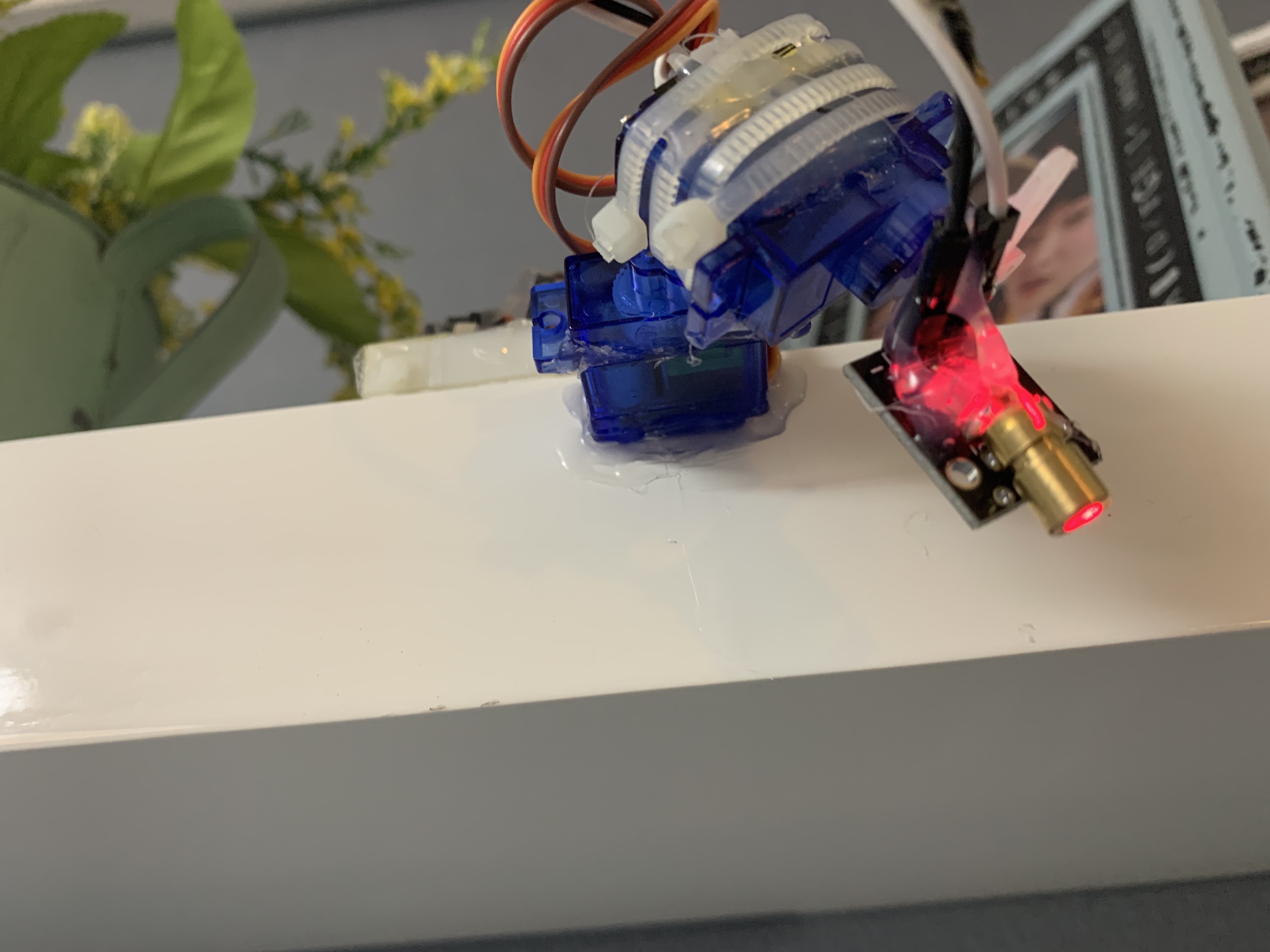

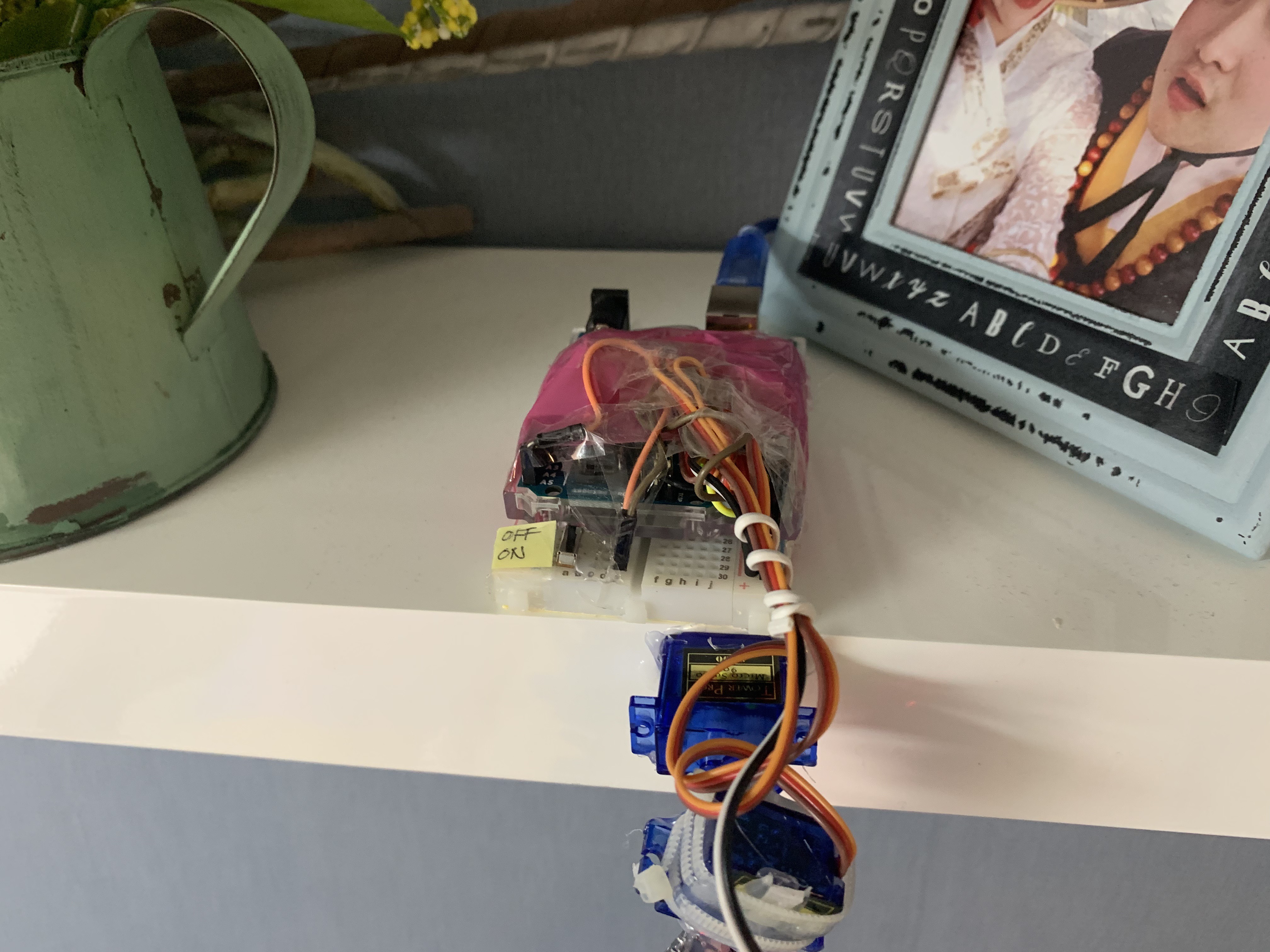

서보모터 2개와 레이저모듈 1개, 아두이노를 이용하여 레이저 장난감을 만들어보았습니다.

on/off 스위치를 통해 아날로그의 신호를 받아 on인지 off인지를 체크하여 장난감이 작동을 시작하는지 판단하여 작동되며, 레이저가 on/off를 주기적으로 실행하여 고양이들에게 관심을 줄 수 있도록 제작하였습니다.

#include <Servo.h>
int cds = A5;
int laser = 2;
int pos = 0;
Servo myservo11;
Servo myservol2;

void setup() {
  Serial.begin(9600);
  pinMode(laser, OUTPUT);
  myservo11.attach(9);
  myservol2.attach(10);
}
void loop() {
  int val= analogRead(cds);
  delay(1000);
  Serial.println(val);
  if(val>=1023){
      Serial.println("START!!!!!");
      Serial.println("SPLASH");
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      delay(100);
      digitalWrite(laser,LOW);
      delay(100);
      digitalWrite(laser,HIGH);
      for (pos = 50; pos <= 230; pos += 1) {
